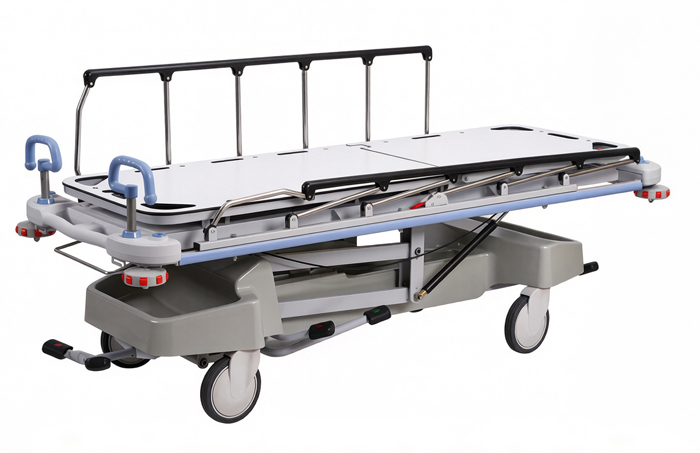

Hydraulic Transfer Stretcher LK2073

Features & Specification

The stretcher is hydraulic system, Height adjusted by step foot pedal, back up by gas spring system.

Gas system at the foot side to operate the trendelenburg & Rev. trendelenburg function.

with bumper on four corners to avoid damage in case of knocking the wall.

Brake pedal at the head/foot side of stretcher, convenient for user.

Back Up: 70º

Trendelenburg / Rev.Trendelenburg:12º

Overall Dimension: L2120xW815xH580/1130mm

Bed Surface:1910x640mm

Height Adjustable: 580~1130mm

Caster: 200mm diameter, central-lock, brake pedal at the head/foot.

Side Rails: Folding stainless steel protective railing.

Bed Surface: X-RAY examination bed board.

Standard Accessories: I.V. Pole

Net Weight:100kg

Packing: 215x83x77cm, 1pc/ctn

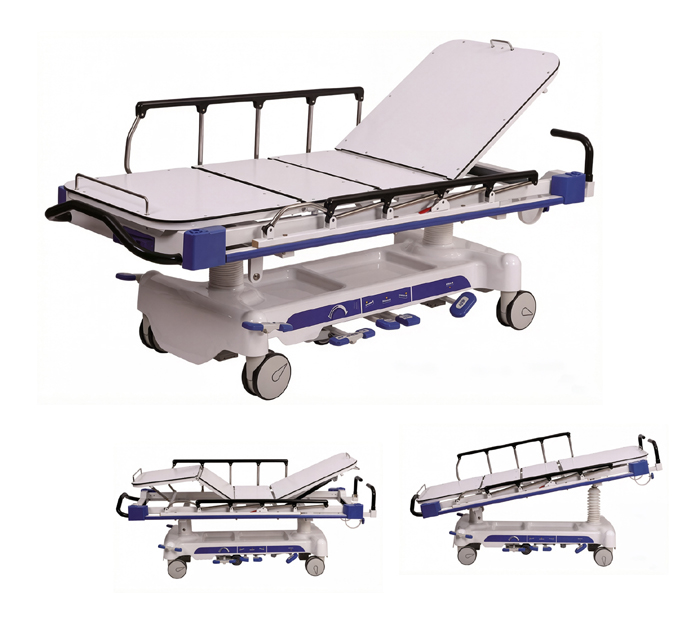

Hydraulic Transfer Stretcher LK2074

Features & Specification

This transfer stretcher is 5 functions available by hydraulic and gas spring and crank system together.

A pair of push-handles at the head/food side to move stretcher.

with bumper on four corners to avoid damage in case of knocking the wall.

Back Up: 60º

Leg Up: 40º

Trendelenburg / Rev.Trendelenburg:13º

Overall Dimension: L2050xW750xH625/850mm.

Bed Surface: 1930x630mm

Height Adjustable: 625~850mm

Caster:150mm diameter,central-lock,with direction castor.

Side Rails: Folding stainless steel protective railing.

Bed Surface: X-RAY examination bed board.

Standard Accessories: I.V. Pole

Net Weight: 105kg

Packing: 211x83x77cm,1pc/ctn

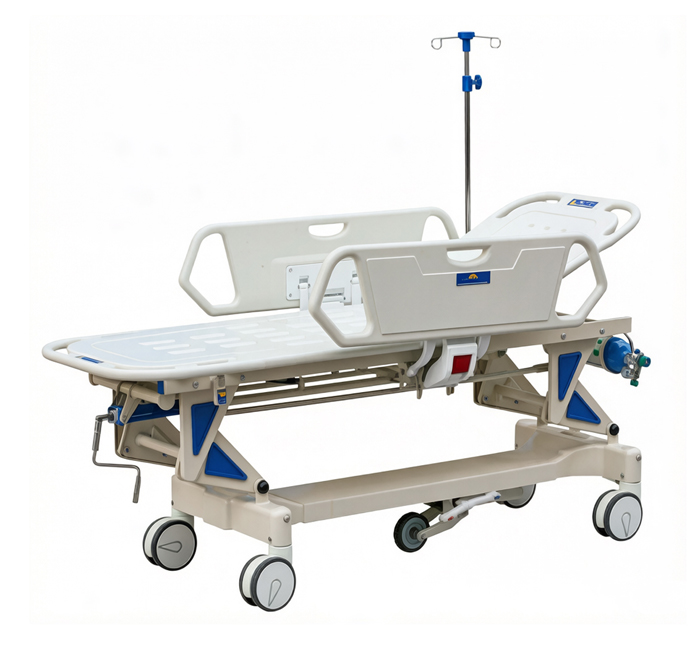

Manual Transfer Stretcher LK5052

Features & Specification

The main frame is automatically pressed by the best alloy aluminum (A380.2).Nice and strong in appearance.

The surface and protecting rails are sprayed by imported PE materials,strong and beautiful.

Single operation design for the bed surface,the upper part is used ltalian damper as the holding energy source.Easy to operate.

Hand rocker instrument can adjust the bed surface height between 580-880mm.

International central control braking system to increase the steady.Direction leading wheels easily come to an ideal situation by only one person.

The complete design and producing of the bed can much more satisfy to your requirement .It is a good choose to hospital by its humanity design.

Back Up: 60º

Height Adjustable by One Crank from 580mm to 880mm

Side Rails: Drop-down protective railing.

Bed Surface: PP bed board produced by blowing molding.

Overall Dimension: L2020xW740xH580/880mm

Bed Surface: 1905mmx610mm

Caster: 150mm diameter, central-lock, with direction castor.

Standard Accessories: Mattress, I.V.Pole

Net Weight: 82kg

Packing: 196x69x68cm,1pc/ctn

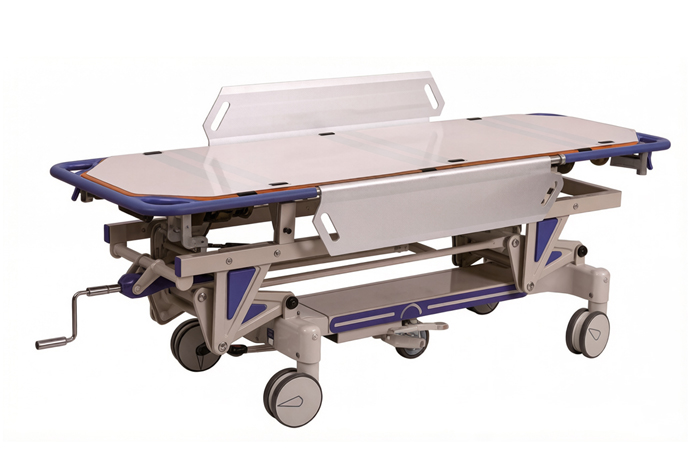

Manual Transfer Stretcher LK5053

Features & Specification

Manual Transfer Stretcher, height adjusted by one crank.

Aluminum alloy side rail can be folded and hidden under the surface in no use.

Rotate the upper crank handle, patient on the mattress can be translate to another bed or flat table.

Caster:150mm diameter, central-lock, with direction castor.

Side Rails: Rotary rollover protective railing, insulating bed board.

Height Adjustable by One Crank from 590mm to 850mm

Horizontal Mover Range: 400mm

Standard Accessories: I. V. Pole

Overall Dimension: L1955xW635xH590/850mm

Bed Surface: 1880x555mm

Net Weight: 92kg

Packing: 199x68x74cm, 1pc/ctn

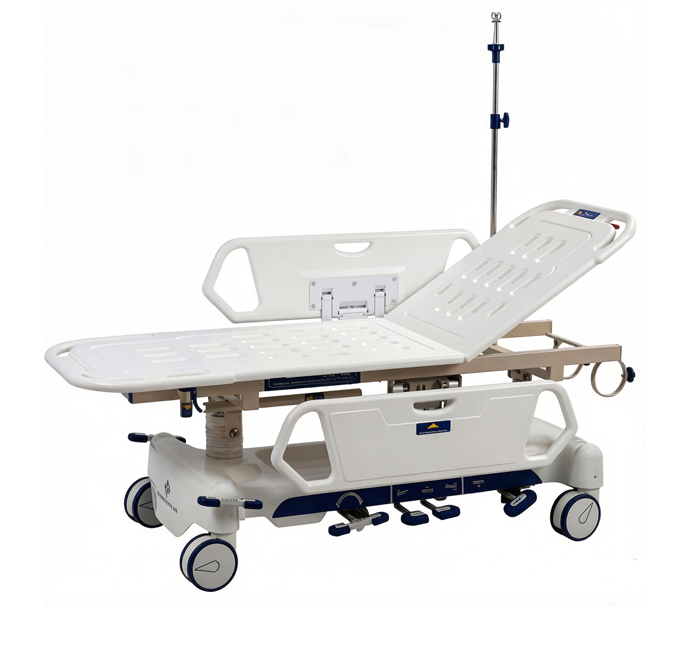

Double Hydraulic Transfer Stretcher LK5054

Features & Specification

The stretcher is made of imported PE materials. Double hydraulic system to make the bed strong and beautiful.

It has direction leading system, body tilt system, and up/down function(580/815mm).

The humanity design and producing of the bed can much more satisfy to the requirement of nursing people.

Back Up: 60º

Trendelenburg /Rev. Trendelenburg: 13º

Caster: 150mm diameter, central-lock, with direction castor.

Side Rails: Drop-down protective railing.

Bed Surface: PP bed board produced by blowing molding.

Standard Accessories: Mattress, I. V. Pole

Height Adjustable from 580mm to 815mm

Overall Dimension: L1905xW750xH580/815mm

Bed Surface: 1905x610mm

Net Weight: 82kg

Packing: 196x78x67cm, 1pc/ctn

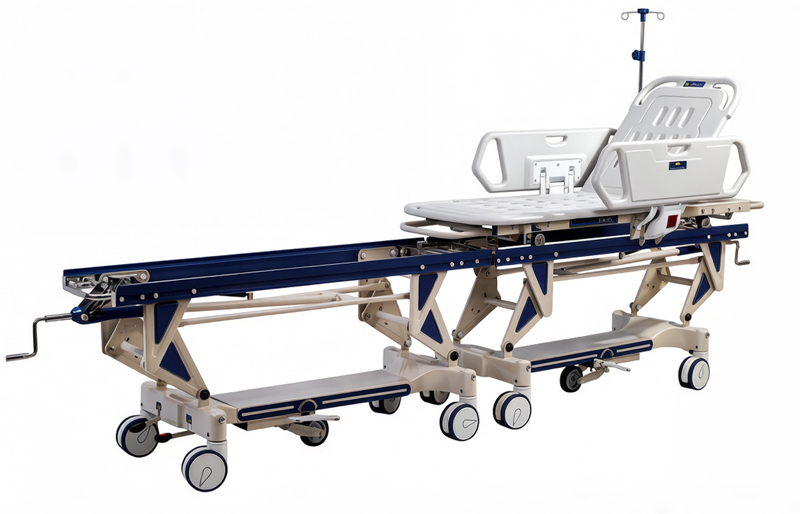

Connecting Stretcher LK2071ABS

Features & Specification

It is a manual connecting transfer stretcher, can be used to defend cross-infection.

Cart A inside the operation room, Cart B outside, adjusting them to the same height then push Cart B to Cart A.

Two carts will be connected, following the orbit part C can be pushed from one cart to anther. and vice versa.

Back Up: 60º

Caster: 150mm diameter, central-lock, with direction castor.

Side Rails: Folding stainless steel protective railing.

Bed Surface: PP bed board produced by blowing molding.

Height Adjustable: 680mm~930mm

Standard Accessories: Mattress, I. V. Pole

Overall Dimension: L3880xW840xH680/930mm

Bed Surface: 1905x610mm

Net Weight:139kg

Packing box 1: 214x70x77cm, 2pcs/ctn

Packing box 2: 186x63x63cm, 1pc/ctn

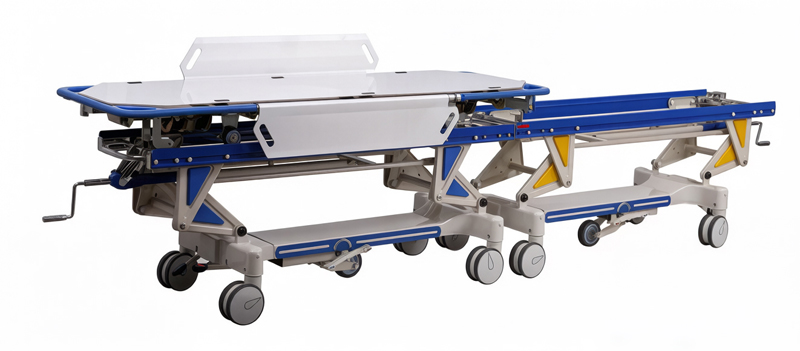

Connecting Stretcher LK2071ABS-2

Features & Specification

It is a manual connecting transfer stretcher, can be used to defend cross-infection.

Cart A inside the operation room, Cart B outside, adjusting them to the same height then push Cart B to Cart A.

Two carts will be connected, following the orbit part C can be pushed from one cart to anther, and vice versa.

Rotate the crank handle on part C, patient on the mattress can be moved parallel to another bed or flat table.

Caster: 150mm diameter, central-lock, with direction castor.

Side Rails: Rotary rollover protective railing.

Bed Surface: Insulation bed board.

Horizontal Move Range:400mm

Height Adjustable from 690mm to 940mm

Standard Accessories: I. V. Pole

Overall Dimension: L3880xW640xH690/940mm

Bed Surface: 1880x555mm

Net Weight: 151kg

Packing box 1: 199x68x79cm, 2pcs/ctn

Packing box 2: 186x63x63cm, 1pc/ctn

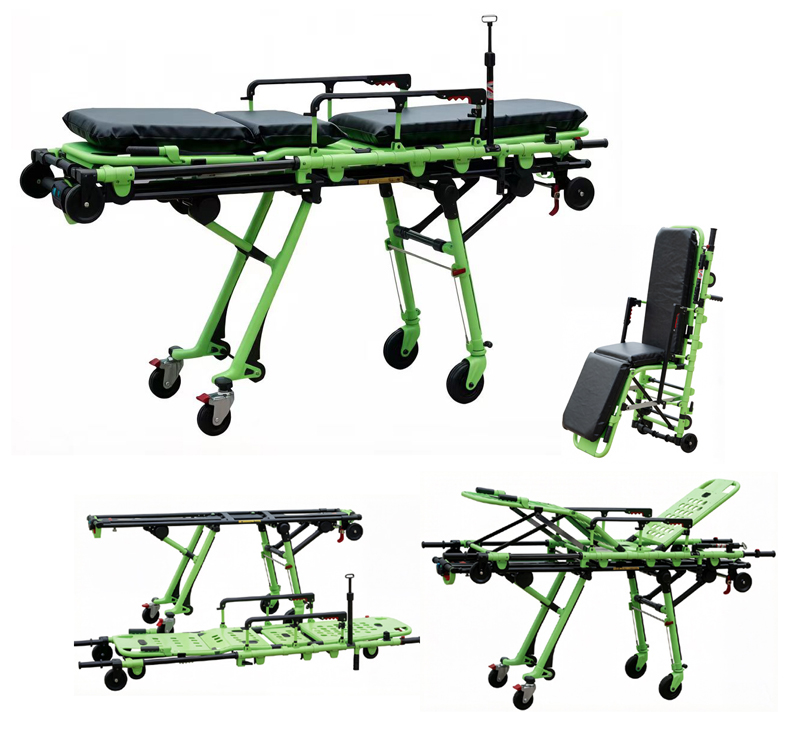

Aluminum Stretcher LK5014

Features & Specification

The stretcher is made of high-strength aluminum alloy materials, Plastic spraying surface treatment.

Both ends can be tilted, the height of the stretcher can be 12different positions adjusted by holding down the handle.

Only one people can push the stretcher up the ambulance car. When loading the stretcher up to the ambulance, the height is 65cm.

The surface is made of waterproof PVC material, seamless welded, easy for clean and disinfection, 8cm thickness.

The backrest can be adjusted by pneumatic sping, which makes the patient feel comfortable. The angle of the backrest is 75º.

Separable surface, make the transport more easy, The bed surface of the stretcher can converted into a chair.

Maximum Angle of the Back: 75º

Maximum Angle of the Knee Part: 18º

Castor Diameter: 150mm

High Position: 196x55x92cm

Low Position: 196x55x33cm

Max. Load: 227kg

N.W./G.W.: 65/85kg

Packing: 200x60x40cm,1pc/ctn

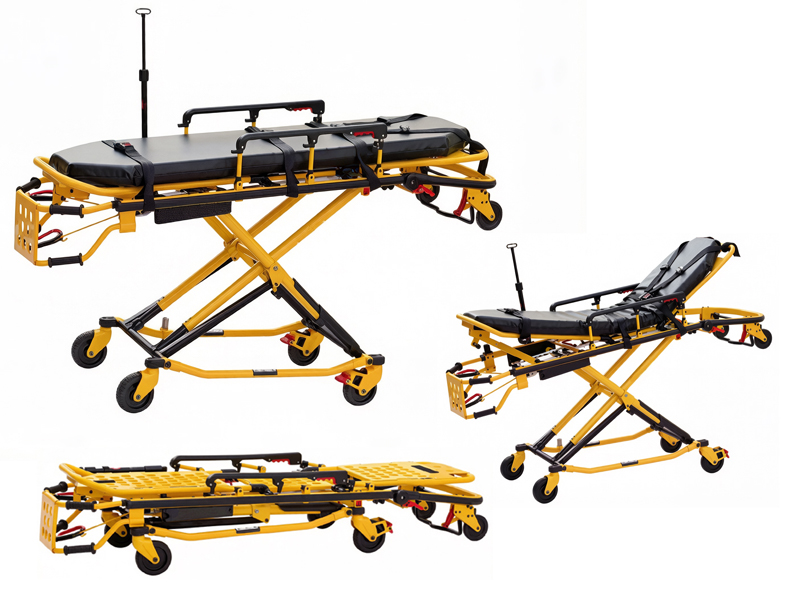

Aluminum Stretcher LK5013

Features & Specification

The stretcher is made of high-strength aluminum alloy material.

The height of the stretcher can be eight different positions adjusted by holding down the handle.

When loading the stretcher up to the ambulance, the height is 73cm.

Only two people can push the stretcher up the ambulance car.

The surface is made of waterproof PVC material, seamless welded, easy for clean and disinfection 8cm thickness.

The backrest can be adjusted by pneumatic spring, which makes the patient feel comfortable.

The angle of the backrest is 75º, the angle of the end for leg is 35º.

The stretcher has safety lock, it must be locked up when transfer the patients, and be open out when on the ambulance.

It is mainly used for hospital, ambulance car and city roads carrying patients and wounded person.

Maximum Angle of the Back: 75º

Maximum Angle of the Knee Part: 15º

Castor: diameter 150mm.

High Position: 196x57x93cm

Low Position: 196x57x31cm

Max. Load: 227kg

N.W./G.W.: 56/79kg

Packing: 206x59x48cm,1pc/ctn

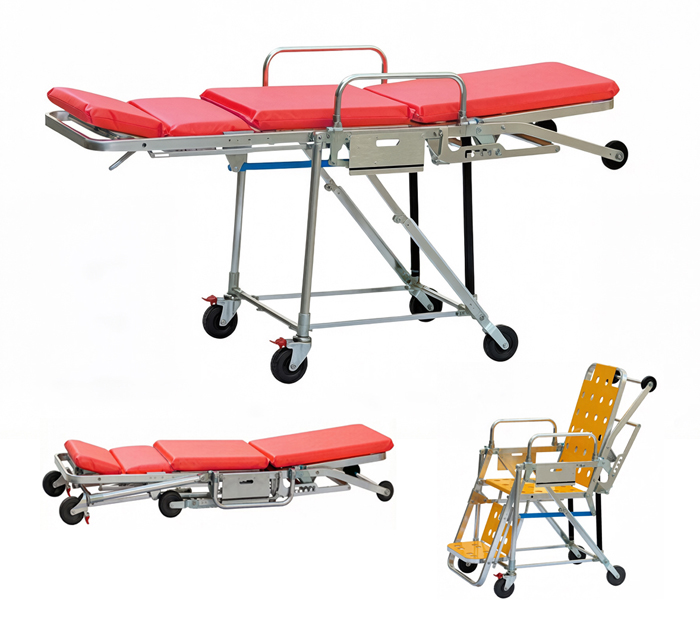

Aluminum Stretcher LK5012

Features & Specification

Stainless steel frame, plate bed surface.

Overall Dimension: 2000x630x700mm

Bed Surface: 1900x570mm

with wheels, I.V. pole, side rails.

Max. Load: 200kg

N.W./G.W.: 43/47kg

Packing:204X70X61cm,1pc/ctn

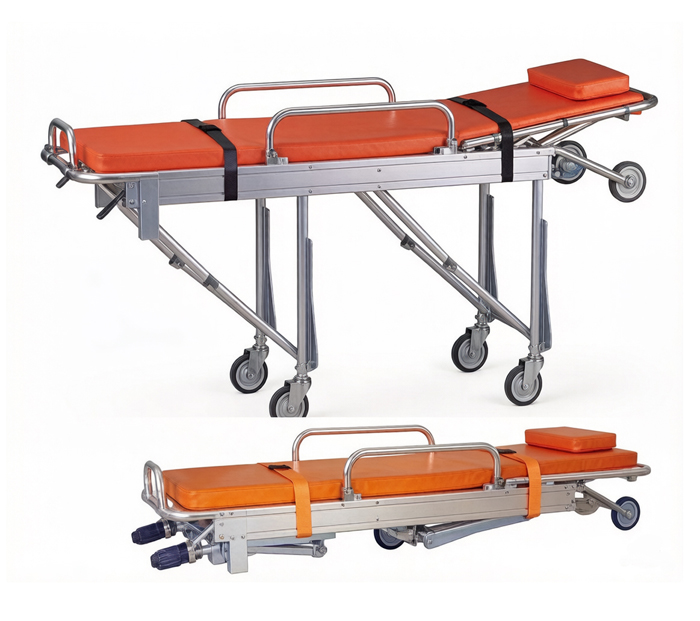

Aluminum Stretcher LK5011

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

The folding mechanism of the leg part can be controlled by the handles on both sides.

Only one medical staff is needed to push the stretcher into the ambulance car.

Loading height can be adjusted in three positions: the highest position: 68m, second position: 63cm, the lowest position: 58cm.

Caster Diameter: 125mm.

High Position: 196x55x88cm

Low Position: 196x55x26cm

Maximum Angle of the Back: 53º

Max. Load: 181Kg

N.W./G.W.: 33/48kg

Packing: 202x62x27cm, 1pc/ctn

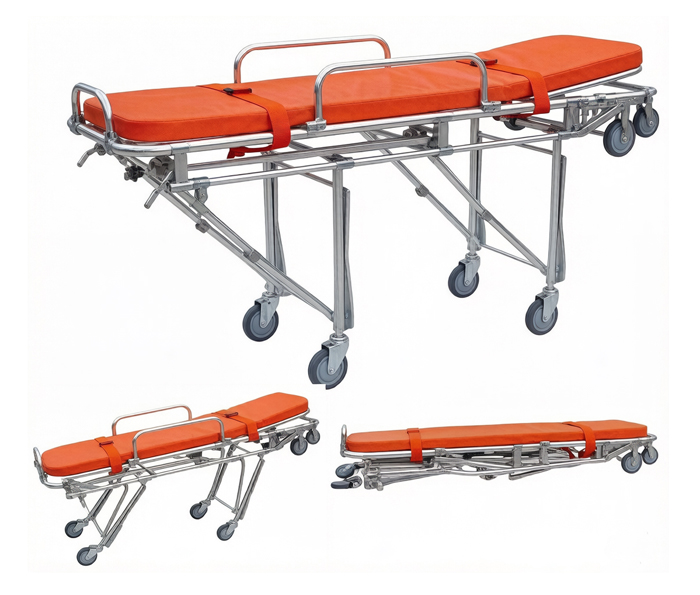

Aluminum Stretcher LK5010

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

The loading part has two wheels, a small one and a big one, and the height is adjustable.

According to the height of the ambulance carriage, the highest loading height is 67cm, the second height is 65cm and the lowest is 64cm.

The folding mechanism of the leg part can be controlled by the handles on both sides.

Only one medical staff is needed to push the stretcher into the ambulance car.

Caster Diameter: 125mm

High Position: 195x56x92cm

Low Position: 195x56x29cm

Maximum Angle of the Back: 50º

Max. Load: 181kg

N.W./G.W.: 35/49kg

Packing: 206x62x31cm, 1pc/ctn

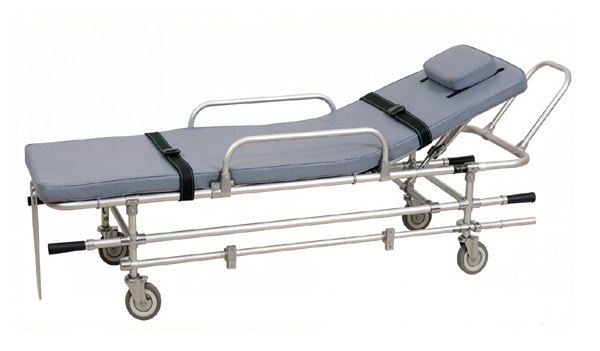

Aluminum Stretcher LK5022

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

The stretcher has a low frame structure. It can be moved on the ground or be lifted up for transport.

There are pull rings on both ends of the stretcher for easier transport.

In designed structure, the middle of the stretcher can store a scoop stretcher.

Applicable for ambulance car which the wheel height is less than 29cm.

Distance between Front and rear wheel: 125cm.

Caster Diameter: 125mm

Maximum Angle of the Back: 60º

Unfolded Size: 191x56x45cm

Max. Load: 181kg

N.W./G.W.:21/32kg

Packing: 196x62x33cm, 1pc/ctn

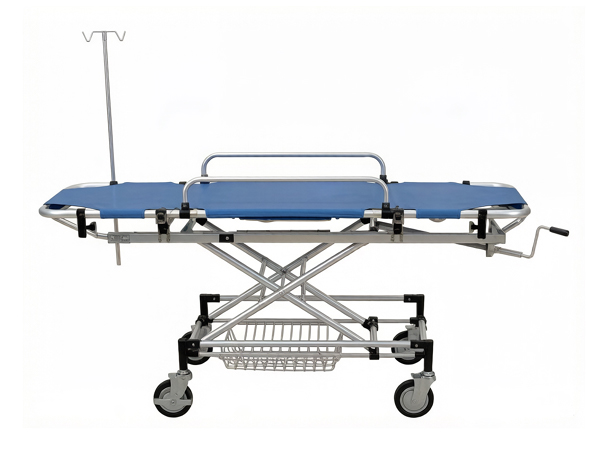

Aluminum Stretcher LK5020

Features & Specification

It can be separated into two parts, top bed used as a strecher.

Material: high-strenth aluminum.

Bed Surface: PVC, easily cleaning and sterilizing.

Overall Dimension:191x55x81cm

Net Weight:35kg

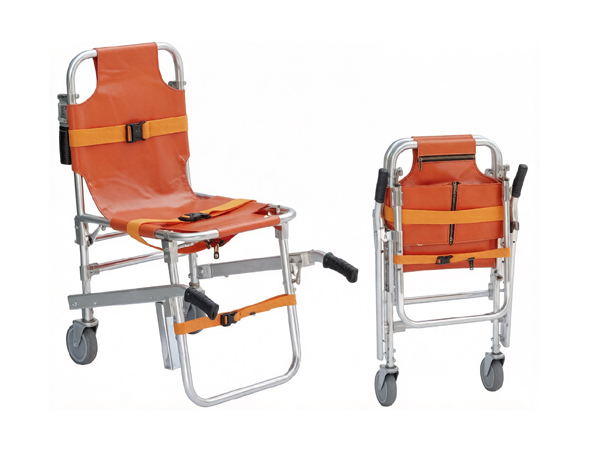

Aluminum Chair Stretcher LK5045

Features & Specification

Overall Dimension: 94x53x71cm

Folded Size: 94x53x23cm

Max. Load:160kg

Net Weight: 10kg

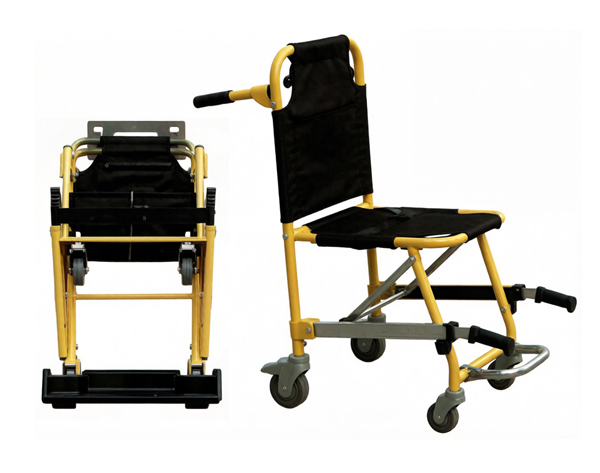

Aluminum Chair Stretcher LK5025

Features & Specification

Overall Dimension: 94x50x73cm

Folded Size: 94x50x23cm

Max. Load:160kg

Net Weight: 10kg

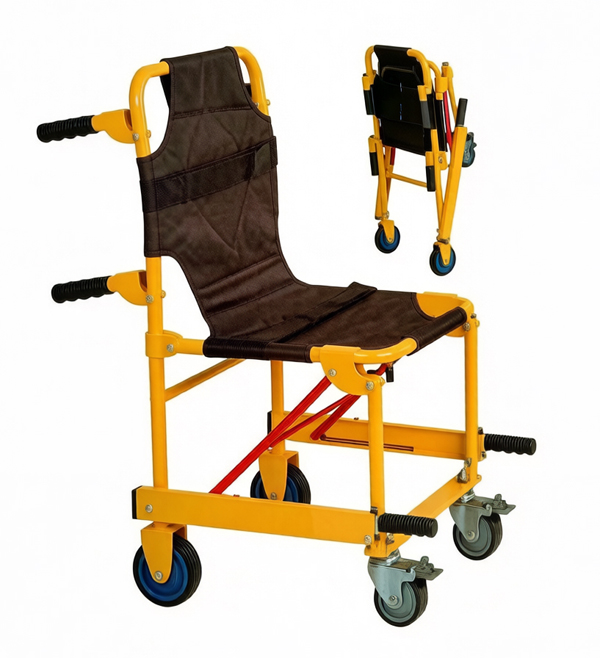

Aluminum Chair Stretcher LK5026

Features & Specification

Overall Dimension: 92x51x60cm

Folded Size: 92x51x22cm

Max. Load:160kg

Net Weight: 10kg

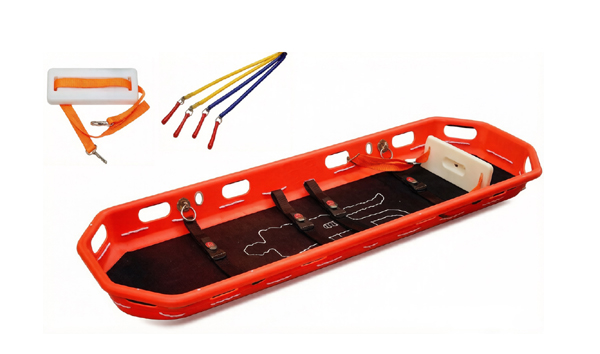

Basket Stretcher LK5201

Features & Specification

The basket stretcher is special emergency for lifted and transported by Helicopter.

with adjustable feet-securing mechanism, four safety belts and mattress.

Material is non-toxic, non-polluting, fire-proof, anti-corrosion and wear-resistant.

Unfolded Size: 218x62x18cm

Max. Load: 270kg

N.W./G.W.:17/21kg

Packing: 222x67x23cm,1pc/ctn

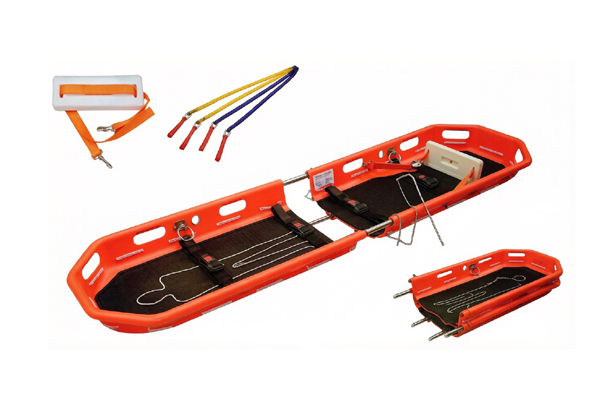

Basket Stretcher LK5202 Detachable Type

Features & Specification

The basket stretcher is special emergency for lifted and transported by Helicopter.

with adjustable feet-securing mechanism, four safety belts and mattress.

Material is non-toxic, non-polluting, fire-proof, anti-corrosion and wear-resistant.

It can split into two parts, easy to carrying and storage.

Unfolded Size: 218x64x18cm

Folding Size: 123x64x22cm

Max. Load: 270kg

N.W./G.W.:18/25kg

Packing: 130x68x31cm,1pc/ctn

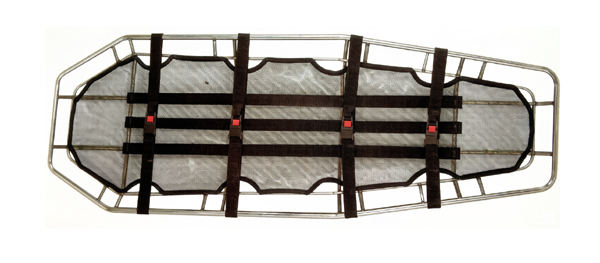

Basket Stretcher LK5203

Features & Specification

The basket stretcher is special emergency for lifted and transported by Helicopter.

with adjustable feet-securing mechanism, four safety belts and mattress.

Frame is Ø25mm stainless steel tube.

Unfolded Size: 212x76x19cm

Max. Load: 350kg

N.W./G.W.:15/17kg

Packing: 216x80x23cm,1pc/ctn

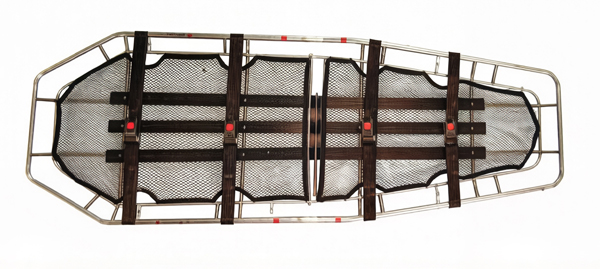

Basket Stretcher LK5204 Detachable Type

Features & Specification

The basket stretcher is special emergency for lifted and transported by Helicopter.

with adjustable feet-securing mechanism, four safety belts and mattress.

Frame is Ø25mm stainless steel tube.

It can be separated into two parts, easy to carrying and storage.

Unfolded Size: 212x76x19cm

Folding Size: 113x76x26cm

Max. Load: 350kg

N.W./G.W.:14/16kg

Packing: 115x80x28cm,1pc/ctn

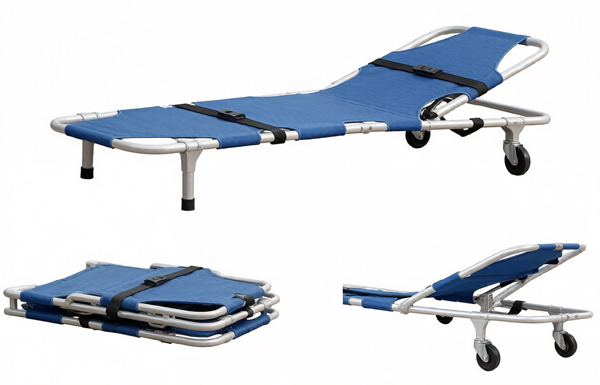

Aluminum Stretcher LK5001

Features & Specification

This stretcher with wheels,outriggers and the back is adjustable,and can be folded.

It is made of high-strength aluminum alloy and oxford leather materials.

It is a characteristic of its being.

light-weighted, small-sized, easy-carried, use safely and easy for sterilization.

It's mainly used for hospital, ambulance car carrying and wounded person.

Unfolded Size: 185x54x24cm

Folded Size: 92x54x14cm

Max. Load: 159kg

N.W./G.W.: 16/19kg

Packing: 98x54x29cm, 2pcs/ctn

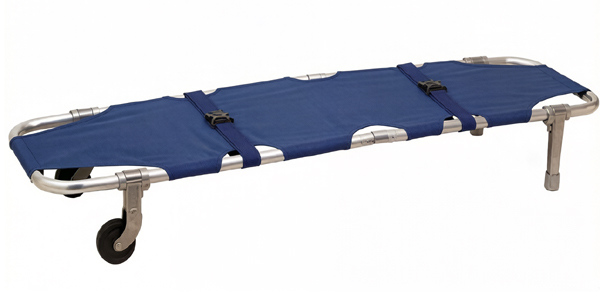

Aluminum Stretcher LK5002

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

Stretcher surface is sewn by oxford leather or laminated PVC sheet.

Unfolded Size:186x51x17cm

Folded Size: 92x51x10cm

Max. Load: 159kg

N.W./G.W.: 12/13kg

Packing: 97x55x20cm, 2pcs/ctn

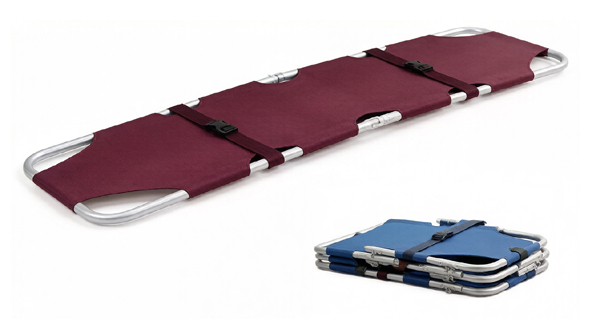

Aluminum Stretcher LK5003

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

Stretcher surface is sewn by oxford leather or laminated PVC sheet.

Unfolded Size: 186x51x8cm

Folded Size: 92x51x10cm

Max. Load:159kg

N.W./G.W.: 6/8kg

Packing: 97x55x18cm, 2pcs/ctn

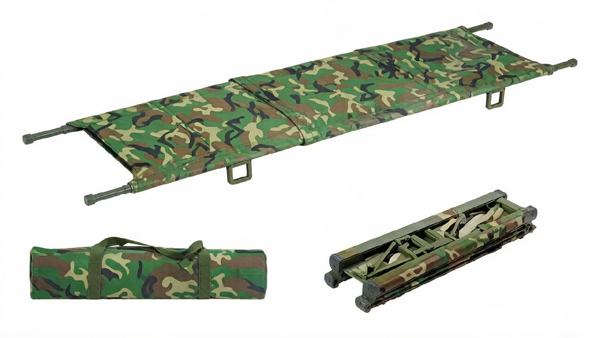

Aluminum Stretcher LK5004

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface powder coating.

Stretcher surface is sewn by oxford leather.

Equipped with telescopic handles which convenient patient transport.

Unfolded Size: 220x54x15cm

Folded Size: 95x20x10cm

Max. Load:159kg

N.W./G.W.:8/9kg

Packing: 97x23x14cm,1pc/ctn

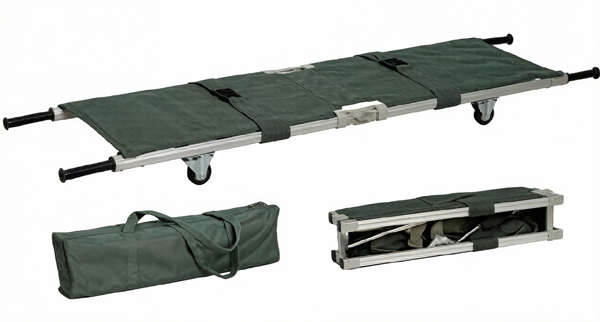

Aluminum Stretcher LK5004W with Wheels

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface powder coating.

Stretcher surface is sewn by oxford leather.

Equipped with telescopic handles which convenient patient transport.

Unfolded Size: 220x54x15cm

Folded Size: 95x20x10cm

with Wheels

Max. Load:159kg

N.W./G.W.:8/9kg

Packing: 97x23x14cm,1pc/ctn

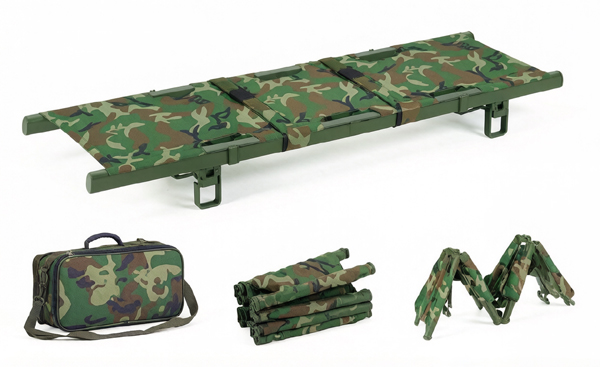

Aluminum Stretcher LK5005

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface powder coating.

Stretcher surface is sewn by oxford leather.

Equipped with telescopic handles which convenient patient transport.

Unfolded Size: 187x52x15cm

Folded Size: 49x18x19cm

Max. Load: 159kg

N.W./ G.W.: 9/12kg

Packing:56x24x32cm,1pc/ctn

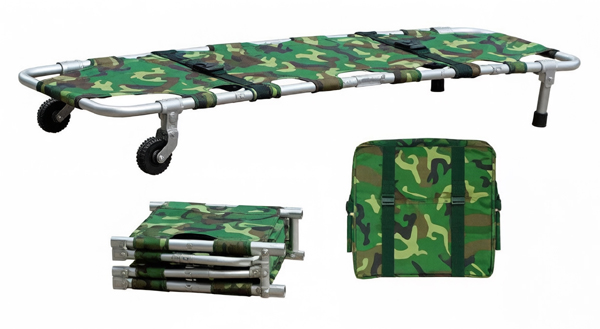

Aluminum Stretcher LK5006

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

Stretcher surface is sewn by oxford leather or laminated PVC sheet.

Equipped with portable backpack.

Unfolded Size: 185x51x21cm

Folded Size: 50x51x16cm

Max. Load: 159kg

N.W./G.W.: 7/9kg

Packing: 56x54x20cm, 1pc/ctn

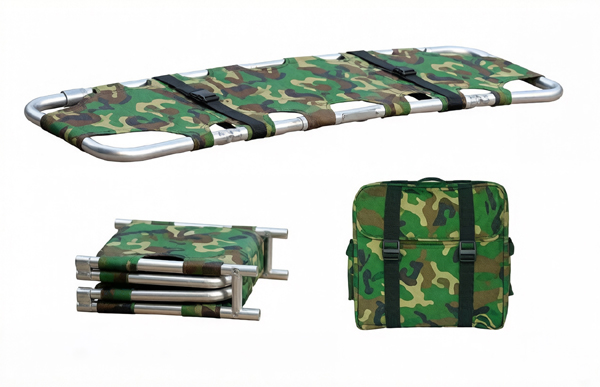

Aluminum Stretcher LK5007

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

Stretcher surface is sewn by oxford leather or laminated PVC sheet.

Equipped with portable backpack.

Unfolded Size: 186x51x14cm

Folded Size: 50x51x16cm

Max. Load: 159kg

N.W./G.W.: 7/9kg

Packing: 55x55x20cm, 1pc/ctn

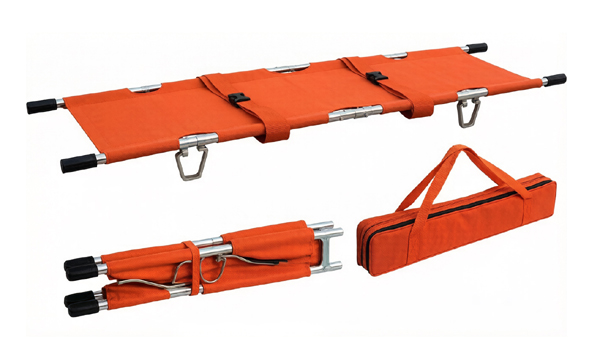

Aluminum Stretcher LK5008

Features & Specification

The main material is high-strength aluminum alloy which is hardened and surface treated.

Stretcher surface is sewn by oxford leather or laminated PVC sheet.

Equipped with portable backpack.

Unfolded Size: 220x53x14cm

Folded Size: 110x18x10cm

Max. Load: 160kg

N.W./G.W.: 6/7kg

Packing: 63x25x15cm, 1pc/ctn

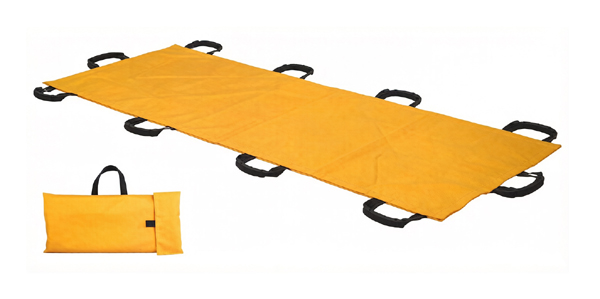

Carry Sheet LK5301

Features & Specification

Material is clean waterproof vinyl.

with ten handles and carry bag.

Unfold Size: 210x75cm

Folding Size: 55x26cm

Max. Load: 100kg

N.W./G.W.: 15/16kg

Packing: 65x30x21cm, 5pcs/ctn

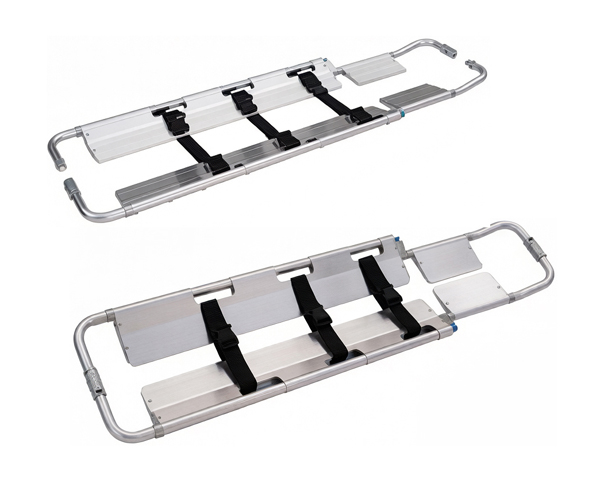

Scoop Stretcher LK5040

Features & Specification

Adopts separable rigid structure. Used to transport fractures and severe wounded.

There are clutch means on both ends which can separate the stretcher into left and right two parts.

The stretcher can immobilize the wounded without moving them, preventing further damage to the wounded.

Quickly shovel the wounded into the stretcher or take out the stretcher from the wounded back without moving them.

Stretcher length can be adjusted in three positions according to the height of the wounded.

The foot-end of the stretcher adopts narrow frame structure.

Unfolded Size: 211x42x7cm

Folded Size: 121x42x10cm

Max. Load:159kg

N.W./G.W.: 8.3/11kg

Packing: 170x43x8cm,1pc/ctn

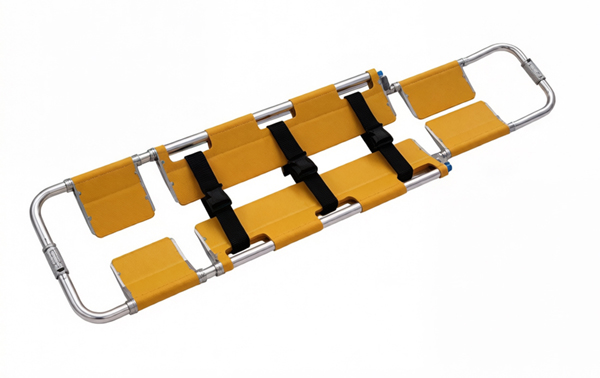

Scoop Stretcher LK5041

Features & Specification

Adopts separable rigid structure. Used to transport fractures and severe wounded.

There are clutch means on both ends which can separate the stretcher into left and right two parts.

The stretcher can immobilize the wounded without moving them, preventing further damage to the wounded.

Quickly shovel the wounded into the stretcher or take out the stretcher from the wounded back without moving them.

Stretcher length can be adjusted in three positions according to the height of the wounded.

The foot-end of the stretcher adopts narrow frame structure.

LK5041 can be used together with head immobilizer.

Unfolded Size: 211x42x7cm

Folded Size: 121x42x10cm

Max. Load:159kg

N.W./G.W.:8.7/11kg

Packing: 170x43x8cm, 1pc/ctn

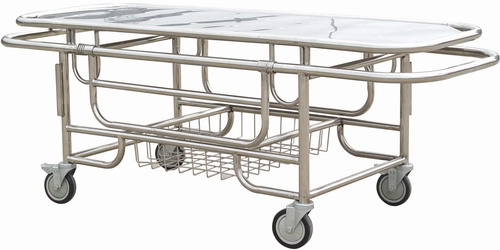

Stainless Steel Trolley LK2068

Features & Specification

Stainless steel frame, plate bed surface.

Overall Dimension: 2000x630x700mm

Bed Surface: 1900x570mm

with wheels, I.V. pole, side rails.

Max. Load: 200kg

N.W./G.W.: 43/47kg

Packing:204X70X61cm,1pc/ctn

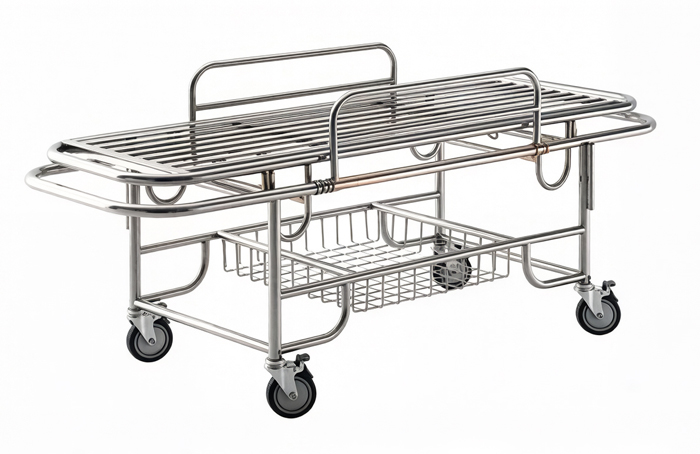

Stainless Steel Trolley LK2068 with Tube Bed Surface

Features & Specification

Stainless steel frame, tube bed surface.

Overall Dimension: 2000x630x700mm

Bed Surface: 1900x570mm

with wheels, I.V. pole, side rails.

Max. Load: 200kg

N.W./G.W.: 43/47kg

Packing:204X70X61cm,1pc/ctn

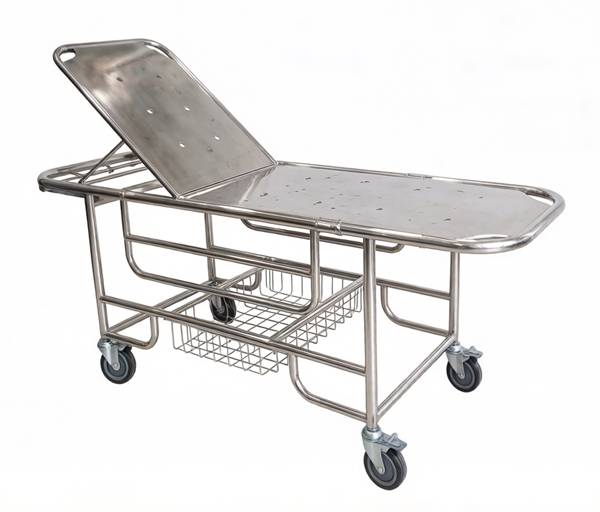

Stainless Steel Trolley LK2068 Simple Design

Features & Specification

Stainless steel frame, plate bed surface, with backrest by hand.

Overall Dimension: 2000x630x700mm

Bed Surface: 1900x570mm

with wheels, I.V. pole, side rails

Max. Load: 200kg

N.W./G.W.:43/47kg

Packing:204X70X61cm,1pc/ctn

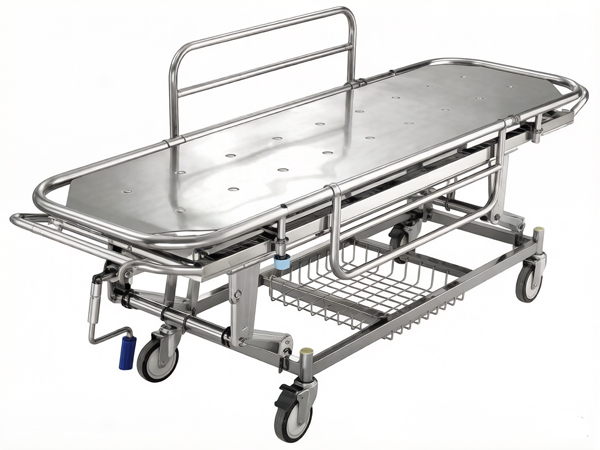

Stainless Trolley LK2067

Features & Specification

Stainless steel frame, plate bed surface.

Height Adjustable from 550mm to 800mm

One crank with wheels, I.V. pole, side rails

Overall Dimension: 2010x570x550/800mm

Bed Surface:1900x570mm

Height adjustable: 250mm

Max. Load: 200kg

N.W./G.W.: 49/51kg

Packing: 200X71X46cm,1pc/ctn

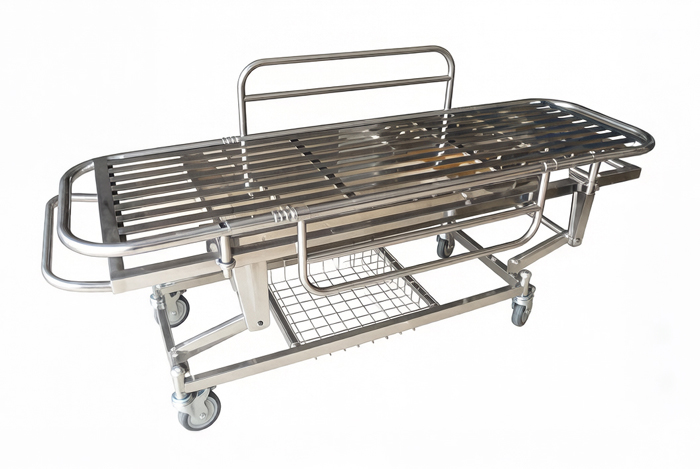

Stainless Trolley LK2067 with Tube Bed Surface

Features & Specification

Stainless steel frame, tube bed surface.

Height Adjustable from 550mm to 800mm

One crank with wheels, I.V. pole, side rails

Overall Dimension: 2010x570x550/800mm

Bed Surface:1900x570mm

Height adjustable: 250mm

Max. Load: 200kg

N.W./G.W.: 49/51kg

Packing: 200X71X46cm,1pc/ctn

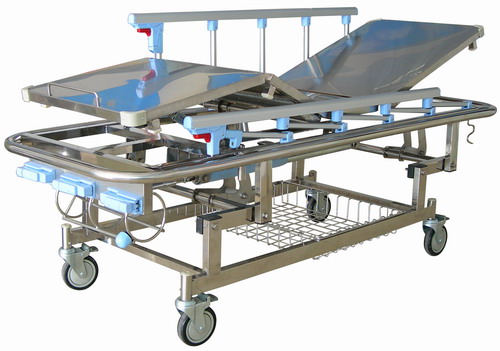

Three Cranks Stainless Trolley LK2069

Features & Specification

Stainless Steel Frame.

Height Adjustable from 500mm to 800mm

with wheels, I.V pole, aluminum side rails, oxygen holder.

Height Adjustable from 500mm to 800mm

Overall Dimension: 1950x750x500/800mm

Bed Surface: 1850x550mm

Wheels Diameter: 125mm

Net Weight: 63kg

Packing: 200x73x49cm, 1pc/ctn

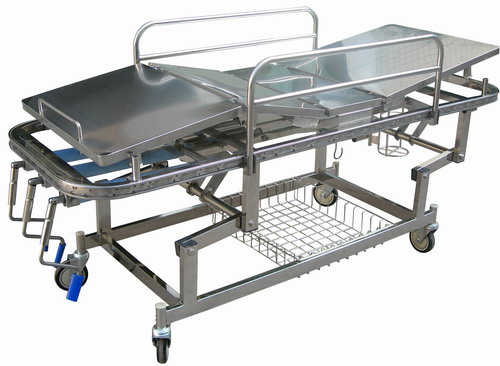

Three Cranks Stainless Trolley LK2069B

Features & Specification

Stainless Steel Frame.

Height Adjustable from 500mm to 800mm

with wheels, I.V pole, aluminum side rails, oxygen holder.

Height Adjustable from 500mm to 800mm

Overall Dimension: 1950x750x500/800mm

Bed Surface: 1850x550mm

Wheels Diameter: 125mm

Net Weight: 63kg

Packing: 200x73x49cm, 1pc/ctn

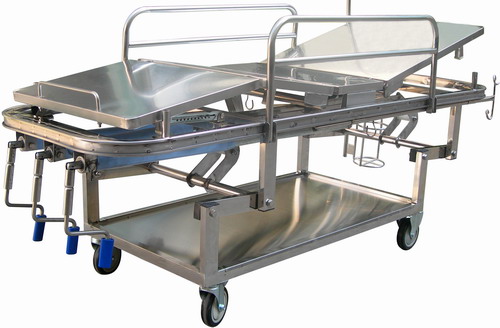

Three Cranks Stainless Trolley LK2069C

Features & Specification

Stainless Steel Frame.

Height Adjustable from 500mm to 800mm

with wheels, I.V pole, aluminum side rails, oxygen holder.

Height Adjustable from 500mm to 800mm

Overall Dimension: 1950x750x500/800mm

Bed Surface: 1850x550mm

Wheels Diameter: 125mm

Net Weight: 63kg

Packing: 200x73x49cm, 1pc/ctn

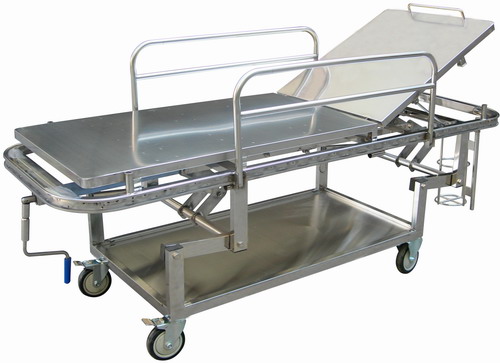

One Crank Stainless Trolley LK2070

Features & Specification

Stainless Steel Frame.

Height Adjustable from 550mm to 800mm

Stainless steel side rails, oxygen holder.

Full stainless steel plate under trolley.

Overall Dimension: 195x750x550/800mm

Bed Surface: 1900x570mm

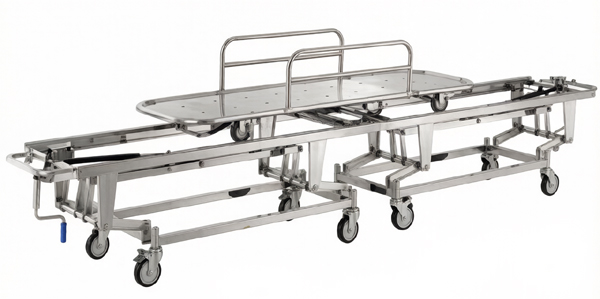

Connecting Transfer Stretcher LK2071

Features & Specification

Stainless Steel, Height Adjustable 250mm

One crank with wheels

Stainless steel side rails

Overall Dimension: 3600x570x550/800mm

Bed Surface: 1900x570mm

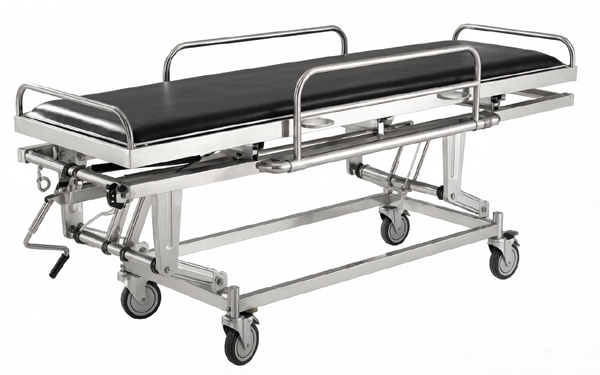

Horizontal Crossing Trolley LK2072

Features & Specification

Stainless Steel, Height Adjustable 250mm

One crank with wheels

Stainless steel side rails

Overall Dimension: 2040x660x550/800mm

Bed Surface: 1900x570mm
